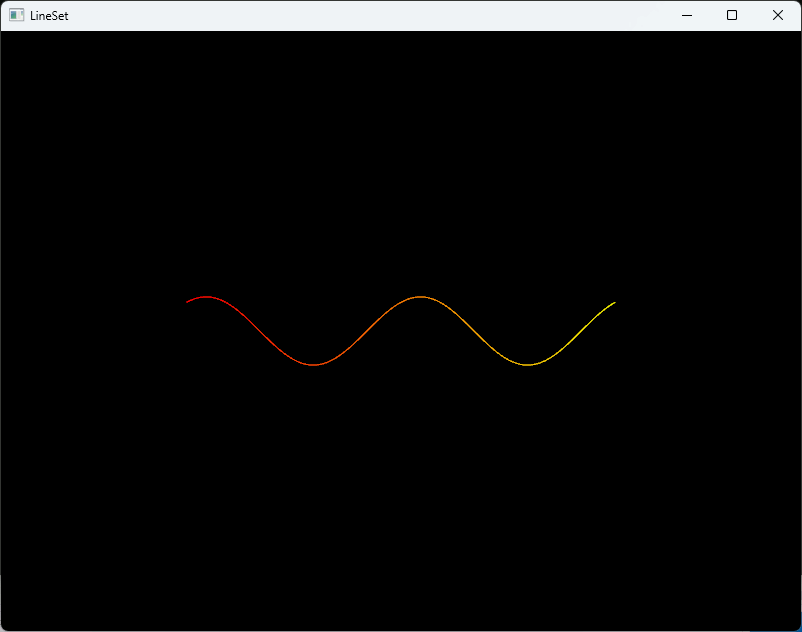

  • Open3D の LineSetの使用例

    #include <open3d/Open3D.h>
    #include <Eigen/Dense>
    #include <vector>
    #include <cmath>
    #include <memory>

    #pragma comment(lib, "opengl32.lib")
    #pragma comment(lib, "glew32s.lib")

    using namespace open3d;

    std::shared_ptr<geometry::LineSet> MakePolyline() {

        const double x0 = -2.0 * 3.14159;
        const double x1 = 2.0 * 3.14159;
        const double amplitude = 1.0; // 振幅
        const double frequency = 1.0; // 周波数
        const double phase = 1.0;     // 位相
        const int samples = 400;

        /////////////////////////////////////////////////////////
        auto lineset = std::make_shared<geometry::LineSet>();

        // 頂点作成
        const double step = (x1 - x0) / (samples - 1);
        for (int i = 0; i < samples; ++i) {
            double x = x0 + step * i;
            double y = amplitude * std::sin(frequency * x + phase);

            lineset->points_.emplace_back(Eigen::Vector3d(x, y, 0.0));
        }

        /////////////////////////////////////////////////////////

        // 頂点インデックスの組み合わせで線分を作成
        for (size_t i = 0; i < samples-1; ++i){
            lineset->lines_.emplace_back(
                (int)i,
                (int)(i + 1)
            );
            // 線分に対する色を設定
            lineset->colors_.emplace_back(Eigen::Vector3d(1.0, i/float(samples), 0.0));
        }

        return lineset;
    }


    int
    main() { auto sine_ls = MakePolyline(); visualization::Visualizer vis; vis.CreateVisualizerWindow("LineSet", 800, 600); vis.AddGeometry(sine_ls); auto& opt = vis.GetRenderOption(); opt.line_width_ = 2.0; opt.background_color_ = { 0, 0, 0 }; vis.Run(); vis.DestroyVisualizerWindow(); return 0; }

    VTK from Open3D (PointCloud)

    #pragma once

    #include <vtkCellArray.h>
    #include <vtkPoints.h>
    #include <vtkPolyData.h>
    #include <vtkPolyDataMapper.h>
    #include <vtkActor.h>
    #include <vtkDoubleArray.h>
    #include <vtkSmartPointer.h>
    #include <vtkPointData.h>
    #include <vtkProperty.h>


    #include <open3d/Open3D.h>
    #include <open3d/geometry/PointCloud.h>
    #include <Eigen/Core>

    #include "vtkFromO3dCommon.hpp"

    namespace vtko3d {


        vtkSmartPointer<vtkPolyData> toCloudPolyData(const open3d::geometry::PointCloud& cloud, USEVALUE usedata=POINT_RGB) {

            // 頂点配列
            vtkSmartPointer<vtkPoints> points = vtkSmartPointer<vtkPoints>::New();

            // 色情報の配列
            vtkSmartPointer<vtkDoubleArray> colors = vtkSmartPointer<vtkDoubleArray>::New();
            colors->SetNumberOfComponents(3);
            colors->SetName("Colors");

            auto normals = vtkSmartPointer<vtkDoubleArray>::New();
            normals->SetNumberOfComponents(3);  // x, y, z
            normals->SetName("Normals");

            // 頂点インデクスの配列
            vtkSmartPointer<vtkCellArray> cells = vtkSmartPointer<vtkCellArray>::New();


            for (size_t i = 0; i < cloud.points_.size(); i++) {

                double x = cloud.points_[i].x();
                double y = cloud.points_[i].y();
                double z = cloud.points_[i].z();
                points->InsertNextPoint(x, y, z);  // 座標追加

                if (usedata & POINT_RGB) {
                    double r = cloud.colors_[i].x();
                    double g = cloud.colors_[i].y();
                    double b = cloud.colors_[i].z();
                    colors->InsertNextTuple3(r, g, b); // 色情報追加
                }
                if (usedata & POINT_NORMAL) {
                    double nx = cloud.normals_[i].x();
                    double ny = cloud.normals_[i].y();
                    double nz = cloud.normals_[i].z();
                    normals->InsertNextTuple3(nx, ny, nz); // 法線ベクトル追加
                }

                cells->InsertNextCell(1);  // 要素数
                cells->InsertCellPoint(i); // 頂点インデックスを追加

            }

            // --- vtkPolyData作成 ---
            auto polydata = vtkSmartPointer<vtkPolyData>::New();
            polydata->SetPoints(points);
            polydata->SetVerts(cells);
            if (usedata & POINT_RGB) {
                polydata->GetPointData()->SetScalars(colors);
            }
            if (usedata & POINT_NORMAL) {
                polydata->GetPointData()->SetNormals(normals);
            }

            return polydata;

        }


        vtkSmartPointer<vtkActor> toCloudActor(vtkSmartPointer<vtkPolyDataMapper> mapper, int point_size = 1,std::optional< std::array<double, 3> > single_color = std::nullopt) {
            auto actor = vtkSmartPointer<vtkActor>::New();

            if (single_color.has_value()) {
                mapper->SetScalarVisibility(false); // 頂点ごとの色情報を無視
            }

            actor->SetMapper(mapper);

            if (mapper->GetScalarVisibility() == false) {
                if (single_color.has_value()) {
                    actor->GetProperty()->SetColor(single_color.value()[0], single_color.value()[1], single_color.value()[2]); // 単色(R, G, B)を指定
                }
            }

            actor->GetProperty()->SetPointSize(point_size);  // 頂点サイズを5に設定(ピクセル単位)
            actor->GetProperty()->SetLighting(false);
            return actor;
        }


        std::shared_ptr<open3d::geometry::PointCloud> createSampleCloud() {
            auto pointcloud = std::make_shared<open3d::geometry::PointCloud>();
            for (size_t i = 0; i < 100000; i++) {
                double x = (double)rand() / (double)RAND_MAX;
                double y = (double)rand() / (double)RAND_MAX;
                double z = (double)rand() / (double)RAND_MAX;
                pointcloud->points_.emplace_back(x, y, z); // 座標追加
                pointcloud->colors_.emplace_back(x, y, z); // 色情報追加
                pointcloud->normals_.emplace_back(x, y, z); // 法線ベクトル追加
            }
            return pointcloud;
        }

    }


    使用例

        auto cloud = vtko3d::createSampleCloud();
        auto polyData = vtko3d::toCloudPolyData(*cloud, vtko3d::POINT_RGB);
        auto mapper = vtko3d::toMapper(polyData);
        auto actor = vtko3d::toCloudActor(mapper,3);


    VTK from Open3D (Mesh)

    open3dのメッシュを可視化するためのコードを纏めておく。

    vtkFromO3dMesh.hpp

    #pragma once


    #include <vtkTriangle.h>
    #include <vtkProperty.h>
    #include <vtkActor.h>


    #include <open3d/Open3D.h>
    #include <open3d/geometry/PointCloud.h>
    #include <Eigen/Core>

    #include "vtkFromO3dCommon.hpp"

    namespace vtko3d {

        vtkSmartPointer<vtkPolyData> toMeshPolyData(const open3d::geometry::TriangleMesh& mesh, USEVALUE usedata, bool withpoints = false) {

            vtkSmartPointer<vtkPoints> points = vtkSmartPointer<vtkPoints>::New();
            vtkSmartPointer<vtkCellArray> triangles = vtkSmartPointer<vtkCellArray>::New();
            vtkSmartPointer<vtkCellArray> vertices = vtkSmartPointer<vtkCellArray>::New();

            // 色情報の配列
            vtkSmartPointer<vtkDoubleArray> colors = vtkSmartPointer<vtkDoubleArray>::New();
            colors->SetNumberOfComponents(3);
            colors->SetName("Colors");

            vtkSmartPointer<vtkDoubleArray> normals = vtkSmartPointer<vtkDoubleArray>::New();
            normals->SetNumberOfComponents(3);
            normals->SetName("Normals");

            for (size_t i = 0; i < mesh.vertices_.size(); ++i) {


                double x = mesh.vertices_[i].x();
                double y = mesh.vertices_[i].y();
                double z = mesh.vertices_[i].z();

                vtkIdType pid = points->InsertNextPoint(x, y, z);

                if (withpoints) {
                    vertices->InsertNextCell(1, &pid);
                }


                if (usedata & POINT_RGB) {
                    double r = mesh.vertex_colors_[i].x();
                    double g = mesh.vertex_colors_[i].y();
                    double b = mesh.vertex_colors_[i].z();
                    colors->InsertNextTuple3(r, g, b); // 色情報追加
                }

                if (usedata & POINT_NORMAL) {
                    double nx = mesh.vertex_normals_[i].x();
                    double ny = mesh.vertex_normals_[i].y();
                    double nz = mesh.vertex_normals_[i].z();
                    normals->InsertNextTuple3(nx, ny, nz);
                }
            }

            //////////////////////////////////////////////////////////////////////
            for (size_t i = 0; i < mesh.triangles_.size(); ++i) {
                size_t p1 = mesh.triangles_[i](0);
                size_t p2 = mesh.triangles_[i](1);
                size_t p3 = mesh.triangles_[i](2);

                // 三角形1 (p1, p2, p3)
                vtkSmartPointer<vtkTriangle> tri = vtkSmartPointer<vtkTriangle>::New();
                tri->GetPointIds()->SetId(0, p1);
                tri->GetPointIds()->SetId(1, p2);
                tri->GetPointIds()->SetId(2, p3);
                triangles->InsertNextCell(tri);

            }



            // vtkPolyData の作成
            vtkSmartPointer<vtkPolyData> polyData = vtkSmartPointer<vtkPolyData>::New();
            polyData->SetPoints(points);

            if (withpoints) {
                polyData->SetVerts(vertices);
            }
            polyData->SetPolys(triangles);  // 三角形セルを設定

            if(usedata & POINT_RGB) {
                polyData->GetPointData()->SetScalars(colors);
            }

            if (usedata & POINT_NORMAL) {
                polyData->GetPointData()->SetNormals(normals);
            }

            return polyData;

        }


        struct wireframe_option {
            bool show_faces = false;
            float line_width = 1.2f;
            std::array<double, 3> line_color = { 1.0, 1.0, 1.0 };
        };


        vtkSmartPointer<vtkActor> toMeshActor(
            vtkSmartPointer<vtkPolyDataMapper> mapper,
            bool usephong=false,
            std::optional<wireframe_option> wireopt = std::nullopt,
            std::optional< std::array<double, 3> > single_color = std::nullopt,
            int point_size = 5
        ) {

            vtkSmartPointer<vtkActor> actor = vtkSmartPointer<vtkActor>::New();
            actor->SetMapper(mapper);

            if (single_color.has_value()) {
                actor->GetProperty()->SetColor(single_color.value()[0], single_color.value()[1], single_color.value()[2]);
            }
            else {
                actor->GetProperty()->SetColor(1.0, 1.0, 1.0); // デフォルトは白色
            }

            vtkPolyData* poly = mapper->GetInput();
            if (poly->GetVerts()->GetNumberOfCells() > 0) {
                actor->GetProperty()->SetPointSize(point_size); // 点のサイズを設定
            }

            if (usephong) {
                actor->GetProperty()->SetInterpolationToPhong(); // またはSetInterpolationToGouraud()
            }

            if (wireopt.has_value()) {
                if (wireopt->show_faces) {
                    actor->GetProperty()->SetRepresentationToSurface();
                    actor->GetProperty()->EdgeVisibilityOn();
                    actor->GetProperty()->SetEdgeColor( wireopt->line_color.data() ); // エッジ色
                    actor->GetProperty()->SetLineWidth(wireopt->line_width);
                }
                else {
                    actor->GetProperty()->SetRepresentationToWireframe();
                    actor->GetProperty()->SetLineWidth(wireopt->line_width);

                    actor->GetProperty()->SetLighting(false);
                    actor->GetProperty()->BackfaceCullingOff();
                    actor->GetProperty()->FrontfaceCullingOff();
                }
            }

            return actor;
        }


        // テスト用のメッシュを作成
        std::shared_ptr<open3d::geometry::TriangleMesh> createSampleMesh() {

            std::shared_ptr<open3d::geometry::TriangleMesh> mesh = std::make_shared<open3d::geometry::TriangleMesh>();

            int xcount = 20;
            int ycount = 20;
            float width = 1.0f;
            float height = 1.0f;
            float depth = 0.1f;
            float density = 10.0f;
            // 頂点の登録
            for (int i = 0; i < xcount; ++i) {
                for (int j = 0; j < ycount; ++j) {
                    double x = -0.5 + 1.0 * i / (xcount - 1);
                    double y = -0.5 + 1.0 * j / (ycount - 1);
                    double z = sin(x * density) * depth + sin(y * density) * depth;
                    mesh->vertices_.emplace_back(x, y, z);
                    mesh->vertex_colors_.emplace_back(x + 0.5, y + 0.5, z + 0.5);

                }
            }

            // メッシュ(三角形)の作成
            for (int i = 0; i < xcount - 1; ++i) {
                for (int j = 0; j < ycount - 1; ++j) {
                    // 四角形を2つの三角形に分割
                    int p1 = i * ycount + j;       // 左下
                    int p2 = (i + 1) * ycount + j; // 右下
                    int p3 = i * ycount + (j + 1); // 左上
                    int p4 = (i + 1) * ycount + (j + 1); // 右上

                    mesh->triangles_.emplace_back(Eigen::Vector3i(p1, p2, p3));
                    mesh->triangles_.emplace_back(Eigen::Vector3i(p2, p4, p3));

                }
            }

            return mesh;

        }

    }


    vtkFromO3dCommon.hpp

    #pragma once

    #include <vtkSmartPointer.h>
    #include <vtkPolyData.h>
    #include <vtkPolyDataMapper.h>

    namespace vtko3d {

        enum USEVALUE {
            POINT_XYZ = 0b0001,
            POINT_RGB = 0b0010,
            POINT_NORMAL = 0b0100,
            POINT_RGBNORMAL = POINT_RGB | POINT_NORMAL,
        };


        vtkSmartPointer<vtkPolyDataMapper> toMapper(vtkSmartPointer<vtkPolyData> polydata) {
            auto mapper = vtkSmartPointer<vtkPolyDataMapper>::New();
            mapper->SetInputData(polydata);
            return mapper;
        }
    }


    使用例

        auto mesh = vtko3d::createSampleMesh();
        mesh->ComputeVertexNormals(); // 法線ベクトルを計算
        auto polyData = vtko3d::toMeshPolyData(*mesh, vtko3d::POINT_RGBNORMAL,false);
        auto mapper = vtko3d::toMapper(polyData);
        auto actor = vtko3d::toMeshActor(mapper, true, vtko3d::wireframe_option{ false });

        auto renderer = vtkSmartPointer<vtkRenderer>::New();
        renderer->AddActor(actor);


    C++、セマフォを使ってブレークポイントのようなものを設置

    動作を中断して状況を見たいが、ブレークポイントなどでプログラムそのものを中断すると出力コードも動かなくて困る。デバッグしたい処理をスレッドで動かし、セマフォを使うことで任意の場所で中断・再開できるらしい。

    #include <iostream>
    #include <semaphore>
    #include <atomic>
    #include <thread>


    class MyBreakPoint {
        std::binary_semaphore gate{ 0 };         // 許可は最大1に飽和
        std::atomic<bool> run_free{ false };     // trueで連続実行
    public:
        // 停止点: run_free=false のときだけ待つ
        void BreakPoint() {
            if (run_free.load(std::memory_order_acquire)) return;
            gate.acquire();
        }

        // 次のBreakPointまで進める
        void ContinueToNextBreak() { gate.release(); }

        // 以後ブレーク無視
        void RunFree() {
            run_free.store(true, std::memory_order_release);
            gate.release(); // 既に待っていれば抜ける
        }

        // 以後BreakPointで停止
        void PauseAtBreak() {
            run_free.store(false, std::memory_order_release);
            // 残っている許可を掃き出し、次回は必ず止まる
            while (gate.try_acquire()) { /* drain */ }
        }

    };


    void worker(MyBreakPoint& pauser) {
        for (int i = 0; i < 100; ++i) {

            // 処理本体
            std::cout << i << std::endl;

            if (i % 5 == 0) {
                std::cout << "i % 5 == 0" << std::endl;

                pauser.BreakPoint(); // ブレークポイント

            }

            // 動作を見るための速度調節
            std::this_thread::sleep_for(std::chrono::milliseconds(100));
        }
        std::cout << "done" << std::endl;
    }


    int main() {
        MyBreakPoint poser;
        std::thread th(worker, std::ref(poser));

        // ユーザー入力でデバッグ操作
        for (char c; std::cin >> c; ) {

            if (c == 'c')
                poser.ContinueToNextBreak();// 次にBreakPointが呼ばれるまで実行

            else if (c == 'r')
                poser.RunFree();// 以後BreakPointを無視

            else if (c == 'p')
                poser.PauseAtBreak();// 以後BreakPointが呼ばれたら止まる

        }
        th.join();
    }


    CStringで正規表現

    MFCを使う機会が増えそうになってきた。CStringで正規表現する方法を調べたがATL,MFCには(今はもう)無いらしく、C++標準のstd::regexを使うのが一番いいらしい。

    // AfxMessageBox
    #include <afxwin.h>

    // CString
    #include <atlstr.h>


    #include <string>
    #include <regex>

    #ifdef _UNICODE
    using tregex = std::wregex;
    using tmatch = std::wcmatch;
    #else
    using tregex = std::regex;
    using tmatch = std::cmatch;
    #endif


    int main()
    {
        CString text = _T("Hello, 123 こんにちは");

    #ifdef _UNICODE
        CString cset= _T(" (UNICODE)");
    #else
        CString cset= _T(" (MULTIBYTE)");
    #endif

        tregex re(_T("こん.*"));
        tmatch match;
        if (std::regex_search( LPCTSTR(text), match, re))
        {
            int length = (int)(match[0].second - match[0].first);
            CString result(match[0].first, length);
            AfxMessageBox(result + cset);
        }

    }


    vcpkgをコマンドプロンプトから実行しようとしてエラーが出た話

    自分で導入したvcpkg installをコマンドプロンプトから実行して以下のエラーに遭遇



    error: Could not locate a manifest (vcpkg.json) above the current working directory.

    This vcpkg distribution does not have a classic mode instance.



    これは自分で導入したvcpkgを実行したつもりで、実はVisual Studioが管理しているvcpkgが実行された場合に起こるらしい。具体的には

    C:\Program Files\Microsoft Visual Studio\2022\Community\VC\Auxiliary\Build\vcvars64.bat

    などでVisual Studioの環境を設定した場合、且つ、環境変数などで自前のvcpkgのパスを通していた場合に起こる可能性がある。

    つまり、vcvars64.batが環境を整備しているときに、Visual Studio以外で導入したvcpkgの存在が確認できた時、これを有効にしてしまうとVisual Studioのvcpkgを使っているつもりなのに異なるvcpkgを操作してしまったということが起こり得てしまいまずいので、強制的にVS用のvcpkgに上書きされる。

    この上書きはdoskeyというコマンドで行われるらしい。以下の確認用コマンドで、もし

    doskey /macros:all | findstr /I ^vcpkg

    の結果が

    vcpkg="C:\Program Files\Microsoft Visual Studio\2022\Community\VC\vcpkg\vcpkg-cmd.cmd" $*

    などであれば、vcpkgのパスが上書きされているので、以下を実行してこの設定を消す。

    doskey vcpkg=

    VTKで指定座標に文字列表示

    描画した頂点の番号や座標値などを表示したいとき用。

    #include <iostream>

    //VTK_MODULE_INITに必要
    #include <vtkAutoInit.h>

    #include <Eigen/Dense>

    #include <vtkSmartPointer.h>
    #include <vtkRenderer.h>
    #include <vtkRenderWindow.h>
    #include <vtkRenderWindowInteractor.h>

    #include <vtkActor.h>
    #include <vtkPolyDataMapper.h>
    #include <vtkPolyData.h>
    #include <vtkPoints.h>
    #include <vtkCellArray.h>
    #include <vtkUnsignedCharArray.h>
    #include <vtkProperty.h>
    #include <vtkPointData.h>



    //必須
    VTK_MODULE_INIT(vtkRenderingOpenGL2);
    VTK_MODULE_INIT(vtkInteractionStyle);


    // 座標群生製
    std::vector<Eigen::Vector3d>
    make_cloud(int count) { std::vector<Eigen::Vector3d> cloud; for (size_t i = 0; i < count; i++) { double x = (double)rand() / (double)RAND_MAX; double y = (double)rand() / (double)RAND_MAX; double z = (double)rand() / (double)RAND_MAX; cloud.push_back(Eigen::Vector3d(x, y, z)); } return cloud; }
    ////////////////////////////////////////////////////////////////
    ////////////////////////////////////////////////////////////////
    ////////////////////////////////////////////////////////////////
    ////////////////////////////////////////////////////////////////
    ////////////////////////////////////////////////////////////////

    #include <vtkStringArray.h>
    #include <vtkLabeledDataMapper.h>
    #include <vtkActor2D.h>
    #include <vtkTextProperty.h>


    // ラベルを表すPolyDataを作成
    vtkSmartPointer<vtkPolyData> toLabel(const std::vector<Eigen::Vector3d>& data) {

        //////////////////////////
        //
        auto points = vtkSmartPointer<vtkPoints>::New();

        // インデックス文字列を作成
        auto labels = vtkSmartPointer<vtkStringArray>::New();
        labels->SetName("labels");

        for (vtkIdType i = 0; i < data.size(); ++i) {

            std::string text = std::to_string(i);

            points->InsertNextPoint(data[i].data()); // 位置
            labels->InsertNextValue(text.c_str());   // ラベル

        }

        auto polyData = vtkSmartPointer<vtkPolyData>::New();
        polyData->SetPoints(points);
        polyData->GetPointData()->AddArray(labels);


        return polyData;
    }


    // ラベル表示用のActorを作成
    vtkSmartPointer<vtkActor2D>  toLabelActor(
        vtkSmartPointer<vtkPolyData> poly,
        int fontSize = 20
        ) {

        double color[3] = { 1.0, 1.0, 1.0 };

        auto labelMapper = vtkSmartPointer<vtkLabeledDataMapper>::New();
        labelMapper->SetInputData(poly);
        labelMapper->SetLabelModeToLabelFieldData();
        labelMapper->SetFieldDataName("labels");

        auto textProperty = labelMapper->GetLabelTextProperty();
        textProperty->SetFontSize(fontSize);  // フォントサイズ
        textProperty->SetColor(color);  // 色
        //textProperty->SetShadow(1);

        auto labelActor = vtkSmartPointer<vtkActor2D>::New();
        labelActor->SetMapper(labelMapper);

        return labelActor;
    }


    ////////////////////////////////////////////////////////////////
    //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// int main(int /*argc*/, char** /*argv*/) { auto renderer = vtkSmartPointer<vtkRenderer>::New(); auto cloud = make_cloud(10);// 座標群を作成 ////////////////////////////////////// // 座標にデータ番号を表示 auto textpoly = toLabel(cloud); vtkSmartPointer<vtkActor2D> textactor = toLabelActor(textpoly); renderer->AddActor(textactor);// ラベル表示 ////////////////////////////////////// renderer->ResetCamera(); auto interactor = vtkSmartPointer<vtkRenderWindowInteractor>::New(); ////////////////////////////////////// auto renderWindow = vtkSmartPointer<vtkRenderWindow>::New(); renderWindow->AddRenderer(renderer); renderWindow->SetInteractor(interactor); renderWindow->Render(); interactor->Start(); //イベントループへ入る return 0; }

    VTK 9.5.1 ビルド unicode MFC 対応

    VTK の MFC 対応 vtkMFCWindow は、文字セットがUnicodeの場合、Debugモードで実行中に以下で実行時エラーが発生する。

    m_vtkMFCWindow = new vtkMFCWindow(this);


    VTKのCMakeLists.txtを編集してこれを回避できるらしい。

    VTK 9.5.1 のCMake

    VTKのソースコードをダウンロードしたら、以下のファイルを開く

    VTK-9.5.1\GUISupport\MFC\CMakeLists.txt

    CMakeLists.txt内、ファイル中央付近に以下のように追加をする。

    # C runtime lib linkage and MFC lib linkage *MUST* match.
    # If linking to C runtime static lib, link to MFC static lib.
    # If linking to C runtime dll, link to MFC dll.
    if (vtk_mfc_static)
      set(CMAKE_MFC_FLAG 1)
    else ()
      set(CMAKE_MFC_FLAG 2)
    endif ()

    set(classes
      vtkMFCWindow
      )

    vtk_module_add_module(VTK::GUISupportMFC
      CLASSES ${classes})
    vtk_add_test_mangling(VTK::GUISupportMFC)

    ### 追加 ###
    vtk_module_definitions(VTK::GUISupportMFC PRIVATE _UNICODE UNICODE)
    #############

    if (vtk_mfc_static)
      vtk_module_link(VTK::GUISupportMFC
        PRIVATE
          "debug;nafxcwd;optimized;nafxcw"
          "debug;LIBCMTD;optimized;LIBCMT"
          Uxtheme
          windowscodecs)
    else ()
      vtk_module_definitions(VTK::GUISupportMFC
        PRIVATE
          _AFXDLL)
    endif ()


    Open3d 0.19をBUILD_SHARED_LIBSでCMake

    別に詰まったわけではないし、公式からダウンロードしたもので事足りるのだけれど、一応成功事例を残しておく。
    Window 11, Visual C++ 2022 x64

    以下を設定

    BUILD_SHARED_LIBS=ON

    これをすると、WEBRTCが使えなくなるのでOFFにする

    BUILD_WEBRTC=OFF

    BUILD_WEBRTC_FROM_SOURCE=OFF

    あと、/MDにしたいので

    STATIC_WINDOWS_RUNTIME=OFF



    ビルド結果は、以下+resources。DLLが少ないのは良いこと。

    Release:

    lib/Open3D.lib
    lib/tbb12.lib

    bin/Open3D.dll
    bin/tbb12.dll

    Debug:

    lib/Open3D.lib
    lib/tbb12_debug.lib

    bin/Open3D.dll
    bin/tbb12_debug.dll



    C++で、複数のディレクトリに格納された連番ファイルを番号ごとに管理する


    #include <iostream>
    #include <vector>
    #include <filesystem>
    #include <regex>
    #include <unordered_map>

    struct PathList {
        std::vector<std::filesystem::path> directories;
        std::vector<std::filesystem::path> files;
    };


    // 指定したパス内のファイル一覧を取得
    PathList
    GetFileList(const std::filesystem::path& _path) { PathList result; if (!std::filesystem::exists(_path) || !std::filesystem::is_directory(_path)) { return result; // 存在しない場合は空を返す } for (const auto& entry : std::filesystem::directory_iterator(_path)) { if (entry.is_directory()) { result.directories.push_back(entry.path()); } else if (entry.is_regular_file()) { result.files.push_back(entry.path()); } } return result; }


    // パスのファイル名からIDを取り出し、pair<size_t, path> の配列で返す
    std::vector<std::pair<size_t, std::filesystem::path>>
    GetFileIncdies(const std::vector<std::filesystem::path>& pathlist,
        const std::regex& pattern,
        std::vector<std::filesystem::path>* excep)
    {
        std::vector<std::pair<size_t, std::filesystem::path>> result;

        for (const auto& p : pathlist) {
            const std::string name = p.filename().string();

            std::smatch m;
            if (std::regex_search(name, m, pattern)) {

                // パターンにマッチしたかどうか
                bool ok = false;

                size_t idx = 0;

                for (size_t i = 1; i < m.size(); ++i) {
                    const std::string s = m[i].str();
                    if (s.empty()) continue;

                    // すべて数字かを判定
                    const bool all_digits = std::all_of(s.begin(), s.end(),
                        [](unsigned char c) { return std::isdigit(c) != 0; });

                    if (!all_digits) continue;

                    try {
                        idx = static_cast<size_t>(std::stoull(s));
                        ok = true;
                        break;
                    }
                    catch (...) {
                        // stoull 失敗時は次のキャプチャを試す
                    }
                }

                if (ok) {
                    result.emplace_back(idx, p);
                }
                else if (excep) {
                    excep->push_back(p);
                }
            }
            else {
                if (excep) excep->push_back(p);
            }
        }

        // インデックス昇順、同値ならパスの辞書順
        std::sort(result.begin(), result.end(),
            [](const auto& a, const auto& b) {
                if (a.first != b.first) return a.first < b.first;
                return a.second < b.second;
            });

        return result;
    }


    template<typename Tuple,typename Pair,int Index>
    std::unordered_map<size_t, Tuple> CreateDataSetList(std::unordered_map<size_t, Tuple>& datamap,std::vector<Tuple>& datasets, std::vector<Pair>& pairs) {

        for (const auto& p : pairs) {
            size_t idx = p.first;
            const auto& path = p.second;

            auto& tupleitem = datamap[idx];
            std::get<Index>(tupleitem) = path; // Index番目にパスをセット

        }
        return datamap;
    }


    // マップをIDでソートしたものを返す
    template<typename Tuple>
    std::vector<std::pair<size_t, Tuple>> SortByID(const std::unordered_map<size_t, Tuple>& byidmap) {
        std::vector<std::pair<size_t, Tuple>> sorted;
        sorted.reserve(byidmap.size());

        for (const auto& kv : byidmap) {
            sorted.emplace_back(kv.first, kv.second);
        }

        std::sort(sorted.begin(), sorted.end(),
            [](const auto& lhs, const auto& rhs) {
                return lhs.first < rhs.first; // size_tキーで昇順
            });

        return sorted;
    }


    using
    Tuple = std::tuple<std::filesystem::path, std::filesystem::path, std::filesystem::path>; using Pair = std::pair<size_t, std::filesystem::path>;
    // パスとパターンからファイル一覧を作成し、インデックスとパスのペアを返す関数
    std::vector<std::pair<size_t, std::filesystem::path> > GetFiles(const std::filesystem::path& path,std::regex pattern){
        PathList fileList = GetFileList(path);

        std::vector<std::pair<size_t, std::filesystem::path> > flist;
        flist = GetFileIncdies(fileList.files, pattern, nullptr);

        return flist;
    }

    int main()
    {
        std::vector< Tuple > dataSetList;

        std::vector<Pair > list_1 = GetFiles("C:\\test\\tmp\\txt", std::regex(R"(新規 テキスト000_(\d+)\.txt)") );
        std::vector<Pair > list_2 = GetFiles("C:\\test\\tmp\\doc", std::regex(R"(doc_000_(\d+)\.doc)") );

        std::unordered_map<size_t, Tuple> byidmap;
        CreateDataSetList<Tuple, Pair, 0>(byidmap, dataSetList, list_1);
        CreateDataSetList<Tuple, Pair, 1>(byidmap, dataSetList, list_2);

        std::vector<std::pair<size_t, Tuple>> sorted = SortByID(byidmap);
        for(const auto& b : sorted) {
            std::cout << "ID: " << b.first << " " << std::get<0>(b.second).filename() << " " << std::get<1>(b.second).filename() << " " << std::get<2>(b.second) << "\n";
        }

    }
